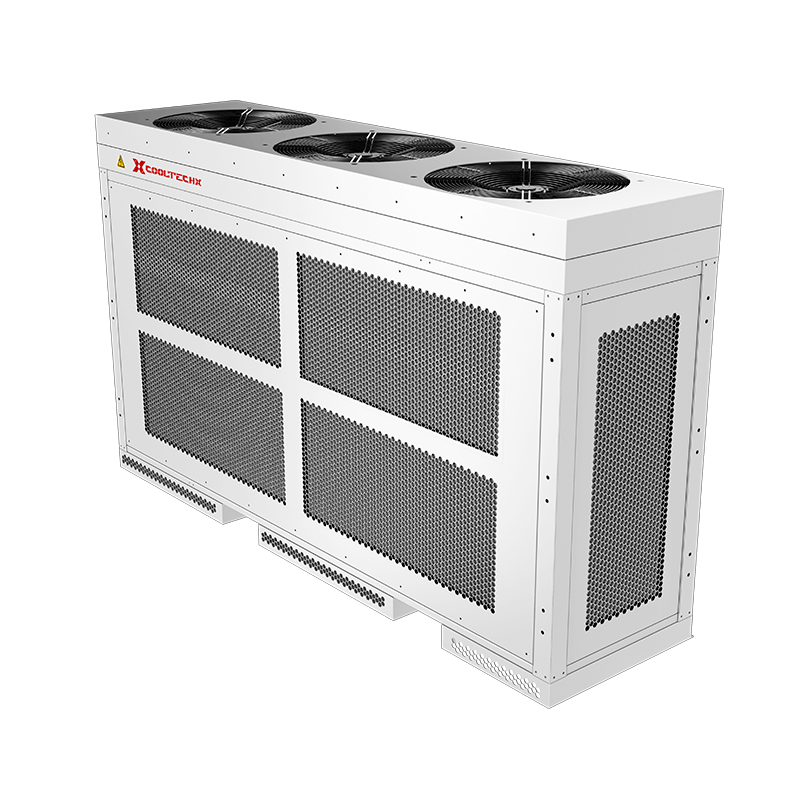

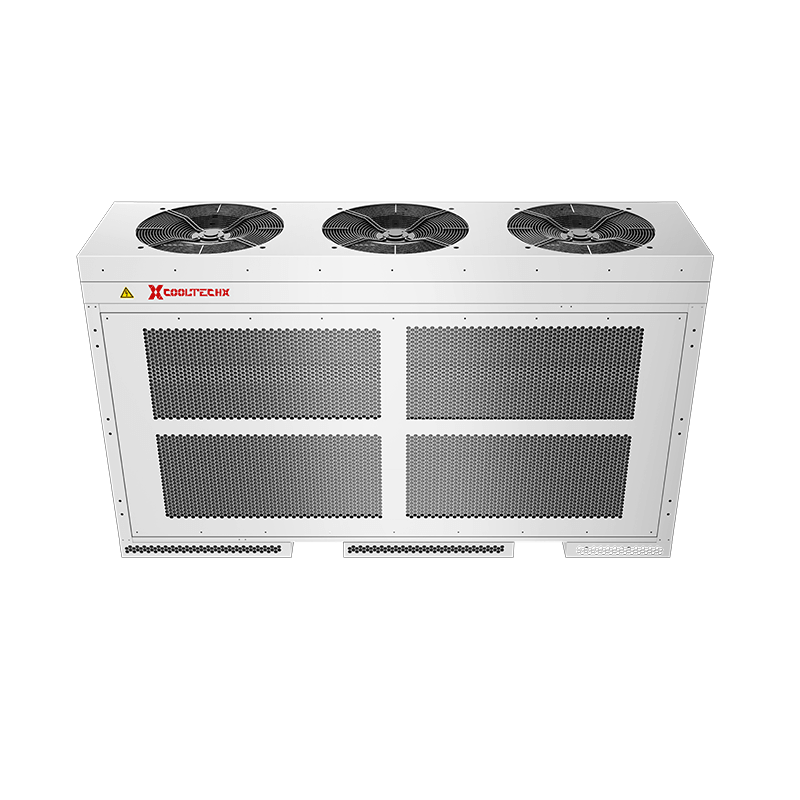

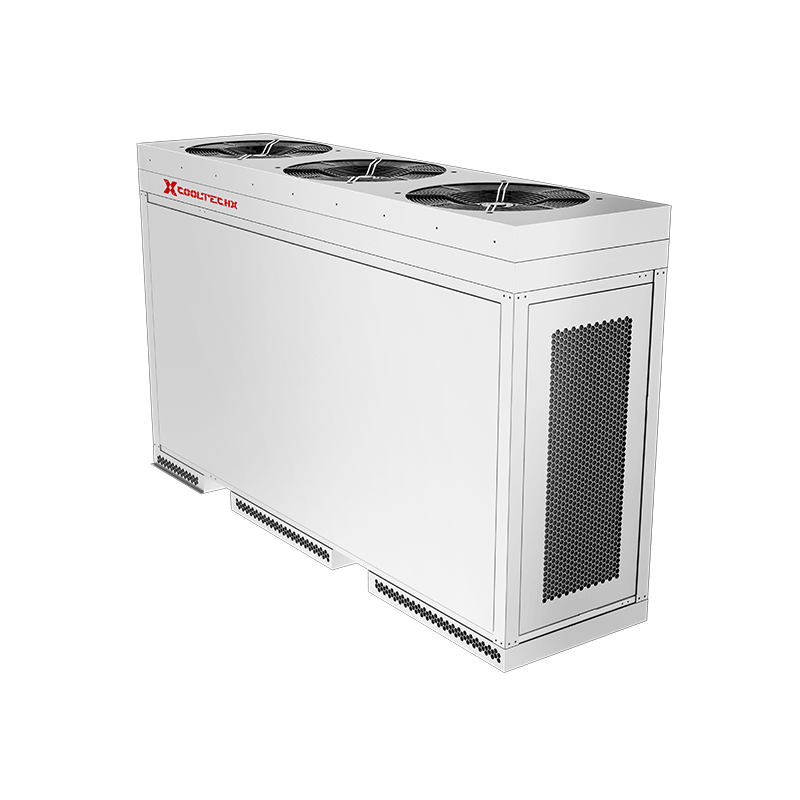

CT-60kW Top-Discharge Containerized Energy Storage Liquid Cooling Solution

CT-60kW Top-Discharge Containerized Energy Storage Liquid Cooling Solution

Our CT-60kW Top-Discharge Intelligent Liquid Cooling Temperature Control Module combines high-efficiency thermal management with cutting-edge liquid cooling technology, ensuring stable performance and long-term reliability for energy storage systems. This modular, scalable solution is ideal for large-scale ESS applications, including renewable energy integration and grid stabilization.
Designed for precise thermal management of energy storage systems, ensuring optimal operation of battery packs in high-temperature or extreme environments.
Main Application Equipment:
Battery Energy Storage Systems (BESS) (Air-cooled & liquid-cooled systems)
Energy Storage Power Conversion System (PCS) Cabinets
Grid-Side & User-Side Energy Storage Cabinets
Data Center UPS Battery Cabinets
Microgrid & EV Charging Station Storage Cabinets
Product Advantage:
✅ Eco-friendly Refrigerant
✅ Power Range: 3kW-70kW (60kW Top-Discharge)
✅ Compatible with Most Containers
✅ Fast Production: 2 Weeks
✅ Customizable & Cost-Effective
✅ Operating Temp: -40°C to 55°C
✅ Low MOQ
✅ 20+ Years of Expertise
✅ IP55 Protection Rating

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product Advantages

FAQ

Project	Unit	Parameter
Rated AC input power supply	V/Hz	380±10% / 50±1Hz
Cooling Capacity	kW	60
Heating Capacity	kW	25
Rated Feed Flow	L/min	500
Hydraulic Head	kPa	150 (15m)
Refrigeration Input Power	kW	≤36
Temperature Control Accuracy	°C	±1
Operating Temperature Range	°C	-40 ~ 55
Protection Level	/	IP55
Refrigerant	/	R410A
Outlet Type	/	Top Discharge

✅ High-efficiency Thermal Management: 60kW cooling capacity with precise ±1°C control, ensuring stable battery operation.
✅ All-weather Adaptability: Works reliably from -40°C to 55°C, ideal for harsh environments.
✅ Top-discharge Design: Optimized for most standard energy storage containers, easy installation.
✅ Eco-friendly & Reliable: Adopts R410A refrigerant with IP55 protection for long service life.
✅ Customizable & Cost-effective: Modular design with fast 2-week production lead time.
✅ Wide Compatibility: Supports BESS, PCS cabinets, data centers and microgrid applications.
